    Anode for Renewable Energy
    Anode for Renewable Energy

    Giá: Liên hệ

      Mã sản phẩm: CM - ARE
    • Hãng sản xuất : Impalloy
    • Bảo hành : 24 Tháng
    • Tình trạng: Sản xuất theo yêu cầu của khách hàng

    Renewable Energy

    Impalloy have been active supplying the renewable energy sector for some while. Notable successes were anode supply to some round 1 and 2 windfarms for example Greater Gabbard, Alpha Ventus and currently Ormonde jacket anodes both for Burntisland Fabrications Ltd.

    Impalloy can provide significant technical input in the control of corrosion for wave and tidal projects, by utilising our long experience in subsea structures. Our corrosion engineers can be commisioned to design the sacrificial anode protection system for your structure.

    Examples of our success to date is the supply of C-Gard platform anodes for the Openhydro unit installed in EMEC, or anodes for the Hywind project for Statoil Hydro.

    The tables below list some C-Gard and C-Sentry anodes selected for this sector. Additional shapes and sizes are shown in the product range table. Alternatively we can design anodes to your specifications. Contact us to discuss this in more detail.

    Download Technical Factfile

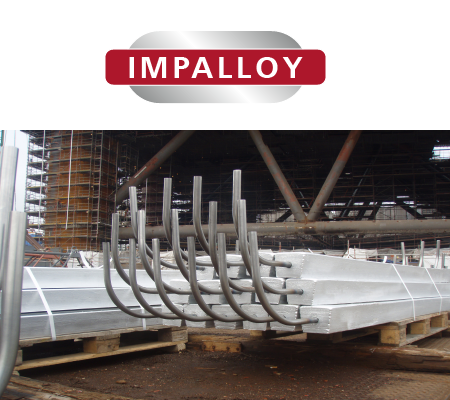

    C-Gard Platform Anodes

    Anode Type Length (mm) Width (mm) Depth (mm) Tubular Insert Nominal Bore Alloy net weight (Kg) Alloy Nett Weight per Metre (Kg)
    1600XP 2600 170 170 75 160 61.5
    2020XP 2500 190 190 75 202 80.8
    1750XP 2500 190 190 100 175 70.0
    2400XP 2622 210 210 100 240 91.5
    3000XP 2745 225 225 100 300 109.3
    3300XP 2372 252 244 100 330 139.1
    4350XP 2910 254 257 100 435 149.5
    5650XP 2973 283 283 100 565 190.0



    C-Sentry Flush Mounted Anodes

    Anode Type Length (mm) Width (mm) Depth (mm) Insert Diameter (mm) Alloy net weight (Kg) Alloy Nett Weight per Metre (Kg) Drawing Number
    Flat Bar Overall length Standard Painted
    202XH 838 133 78 50 x 6 1038 20.2 22.7 C5242 C5242
    320XH 1219 152 64 50 x 6 1435 32 35.4 C5544 C5544
    352XH 1159 175 65 50 x 6 1435 35.2 38.5 C5545 C5545
    681XH 1515 133 127 40 x 8 1715 68.1 72.4 3494 3494
